e-Line

A highly transparent point-to-point Ethernet service

Point-to-point scalable connectivity
High-performance Access speed
Comprehensive web-based reporting

Two people having a conversation in office

Point-to-point Ethernet

TPG Telecom's e-Line is designed to link office locations or head offices with data centres or major facilities. This product provides complete flexibility for redundancy, resiliency and reliability.

TPG Telecom's point-to-point and point-to-multipoint offerings - connecting 2 or more geographic sites in a hub-and-spoke configuration - enables fast, secure and scalable Ethernet connectivity. The service allows for the efficient carriage of bulk data transfer such as SAN Replication and WAN back up.

Call 13 42 02

Benefits

Secure

Each connection is given a unique encapsulation ID to create an ePipe that encapsulates all data and runs across TPG Telecom's private backbone.

Protocol transparency

Full transparency for any Layer 3 protocols to offer complete flexibility and legacy support.

Jumbo frames

Increased efficiency and reduced fragmentation with frames that carry up to 4 times more payload data.

Specifications

Configuration	Point-to-point or point-to-multipoint
Transport Technology	MPLS Core with various Access technologies/clear transmission
Access Networks	TPG Fibre (Fibre400/1000) TPG Ethernet NBN Other Third Party access
Bandwidth	2Mbps-10Gbps Flexible bandwidth options available ranging up to 10Gbps
MPLS CoS Options	Standard: best effort delivery Business: assured delivery Carrier: expedited forwarding with end-to-end latency, jitter and packet loss performance contract
Ethernet Frame Size (MTU)¹	Business and Carrier: Fast Ethernet interfaces: 1531 bytes Gigabit Ethernet interfaces: 8960 bytes 10 Gigabit Ethernet interfaces: 8960 bytes Standard: 1526 bytes
VLAN Transparency¹	Business and Carrier: customer VLANs are supported transparently² Standard: some limitations apply, contact TPG
Protocol Transparency^{1 & 3}	Business and Carrier: Layer 2/3 supported transparently² Standard: some limitations apply, contact TPG
QoS Transparency	TPG does not adhere to, nor modify customer assigned priority bits (802.1p/DSCP)
Site Requirements	Rack space (1RU) and 240V AC 50Hz power to be provided by the customer
Reporting Access Availability and Performance Reporting	Carrier: Access availability and performance reporting, RFC2544 compliance test report at service handover Business: Access availability and performance reporting Standard: some limitations apply, contact TPG
Contract Terms	Minimum contract term is 12 months. Longer contract terms (e.g. 24 months, 36 months and longer) are available and attract term discounts.
Provisioning Targets	TPG On-Net Infrastructure: 4-7 weeks from Date of Order Acceptance
MEF Certification	MEF 2.0

¹ Access network dependant
² Where delivered via Ethernet Trunk Access the customer's equipment must support VLAN stacking
³ Where delivered via Ethernet Trunk Access the customer must tunnel Layer 2 control protocols

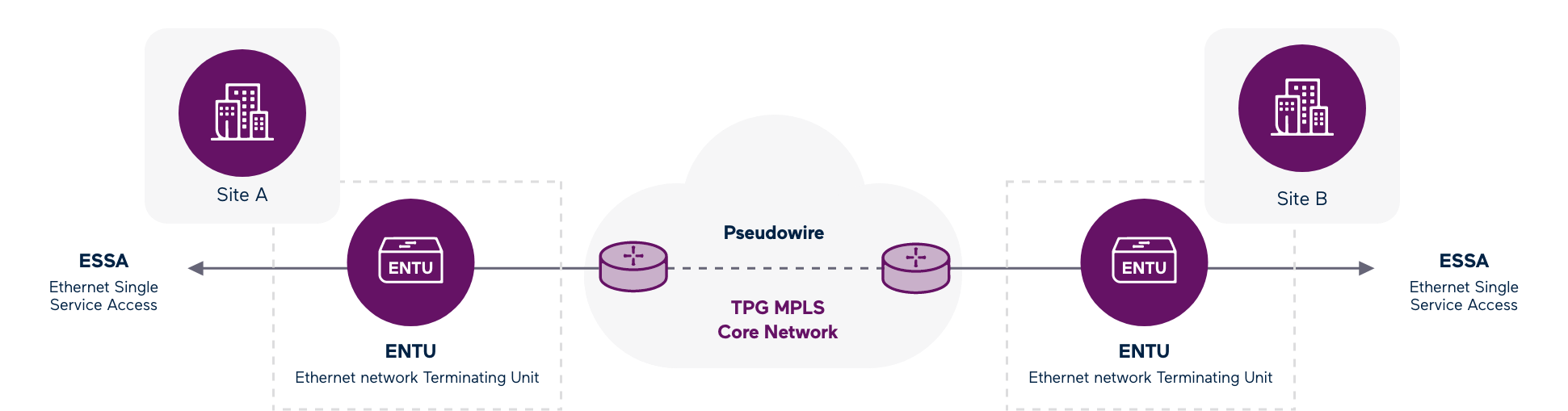

How it works

Interested? Talk with a Solutions Specialist
